Product Description

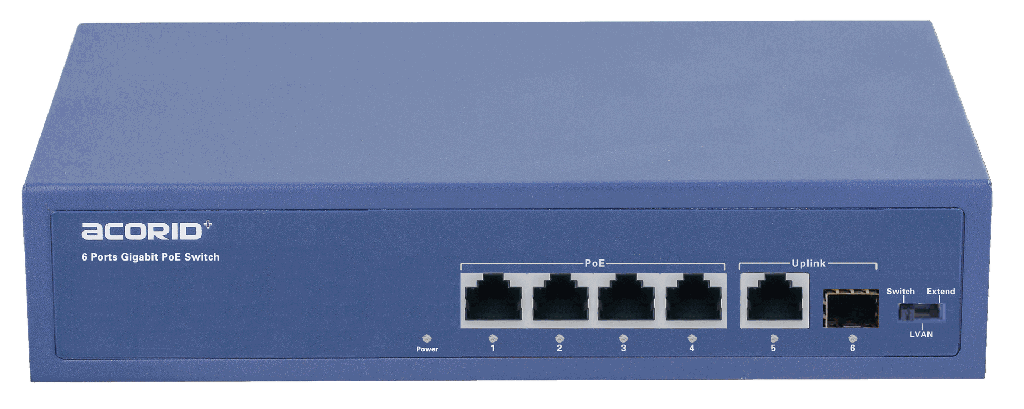

The GLS1106PTF is a 4-port Gigabit PoE switch developed by ACOIRID, providing 4*10/100/1000M adaptive RJ45 ports, 1*1000M RJ45 Uplink port, 1*1000M SFP fiber interface, and each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. The downlink ports all support IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable.
The device is plug-and-play, no need to configure, simple and convenient to use. It can be used in security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprise networking access layer.
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● Support IEEE 802.3af/at PoE power supply standard
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
● The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the high-priority port is guaranteed first
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
Physical Characteristics
Model | GLS1106PTF |
Downlink Ports | 4*10/100/1000M RJ45 ports |
Uplink ports | 1*1000M RJ45 Uplink ports+1*1000M SFP fiber |
PoE Standard Power Supply | IEEE 802.3at、IEEE 802.3af |
Total Power Supply | 65W |
LED Indicator | Power Link, Act |
Transmission Mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
Backplane Bandwidth | 12Gbps |
Packet Forwarding Rate | 8.92Mpps |
MAC Address | 4K |
Standard Protocol | IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3az EEE |
Power Supply | AC 100~240V 50/60HZ |
Size | 200mm × 133mm × 44mm |
Environmental Specification | Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: - 20℃～70℃, Humidity: 5% ~ 95% |
Product Description
GLS1106PTF | 4*10/100/1000M Auto-negotiation RJ45 port + 1*1000M RJ45 Uplink ports+1*1000M SFP fiber |
Specifications
Downlink Ports 4*10/1000M RJ45 ports | Uplink ports 1*1000M RJ45 Uplink ports+1*1000M SFP fiber |
Total Power Supply 65W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 12Gbps |
Packet Forwarding Rate 8.92Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol
IEEE 802.3at、IEEE 802.3af
|
Power Supply AC 100~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
